便携式气象站（6要素-风速，风向，气温，气压，降雨，相对湿度,带RS232计算机接口美国优势）

型号:T9M260278 H1国际直购
库号：M260278

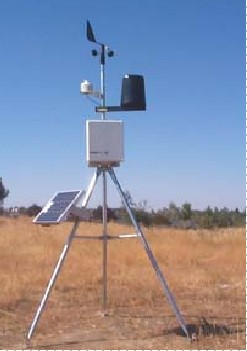

T9M260278气象站是一个模块化气象站
以计算机为基础的气象系统的设计
数据存储和真正解决方案-
“界面友好”
监测的气候条件。这
标准包装包括:

风速风向　空气温度;
相对湿度　　气压;
降水
数据采集仪
及三脚架和桅杆
电池和电池充电器
选配探头：
太阳能辐射传感器、土壤和水温度传感器,
土壤水分蒸发传感器。
The unique modular system design provides
plug-and-play functionality for adding or
replacing sensors. The T9M260278 Data
Acquisition Module includes the following
features larger nonvolatile memory, selectable
averaging intervals, 12 bit analog conversion,
0.1% F.S. accuracy, two alarm outputs, and
ptional modem communications. o
The T9M260278 is supplied with an attractive
desktop data acquisition module with a memory capacity of 128KB RAM (approximately
45 days at 15 minute intervals with 6 sensors). The standard system includes a 120Vac
power adapter and RS232 serial port for connection to a personal computer. For outdoor
or remote applications, two enclosure options are available. One is for sites with AC
power and the other utilizes a solar panel. Both options include a NEMA-4X enclosure
and rechargeable battery to allow continued operation in the event of power failure.
Data can be viewed using Windows HyperTerminal or other terminal programs such as
Procomm. A one page real-time text display or an ASCII row and column format may be
selected. A menu is provided for setting the date and time, alarms, logging interval etc.
Optional graphical displays software is available for viewing real-time and historical data
charts and graphs.

Data Acquisition Module
Reporting units: English or Metric, all
measurements
Operating power: 10-16 Vdc
Power consumption: 60 mA maximum
Serial port: 9-pin d-sub connector,
selectable baud rate, flow control
Memory: 128KB RAM, nonvolatile (45 days
at 15 minute intervals with
6 sensors) Expandable to 256KB or 512KB.
Operating Temperature
Transducers: -40° to 140° F (-40° to 60° C)
Data acquisition module: -40° to 140° F (-
40° to 60° C)
Timekeeping
Format: MM/DD and HH:MM
Accuracy: ± 30 seconds/month
Barometric Pressure
Range: 28.25 to 30.75 inches Hg
Measurement span: 2.50 inches Hg (85
hpa)
Resolution: ± 0.01 inch Hg or ± 0.3 hpa
Altitude offset: 0 to +10,000 feet,
screwdriver adjustable
Absolute Accuracy: .05 inches Hg
Wind Speed
Range: 0 to 125 mph (0-57 m/s)
Resolution: > 0.1 mph
Accuracy: ± 1 mph
Starting threshold: 0.8 mph
Time constant: 2 seconds
Wind Direction
Range: 0-360°
Resolution: > 1%
Accuracy: + 1°F
Starting threshold:
WS02E: 1.2 mph
WS05E: 0.5mph
Relative Humidity
Range: 0-100% RH
Accuracy: + 3% (10-90%)
Wind Direction
Range: 0 - 360°
Resolution: > 1%
Accuracy: + 3%

Solar Radiation
(optional)
Sensor: Silicon Pyranometer
Spectral range: .4 to 1.1 microns
Sensitivity: 80 mV / 1000w/m2 approx
Accuracy: + 5%
Ordering Information
T9M260278 Modular Weather Station
includes the following components:
T9M260278D Data Acquisition Module in
Desktop Enclosure,
includes set-up disk and 6’ serial cable
WS02E Wind Speed/Direction Sensor,
40' cable
T9M260278TH Outdoor Temperature &
Relative Humidity Sensor,
40' cable
T9M260278THS Solar Radiation Shield for
temp/rh sensor
T9M260278BP Barometric Pressure Sensor,
18" cable
T9M260278RC Rain Gauge, includes
mounting arm and 40' cable
T9M260278TM 5' Tripod & 5' Sensor Mast (8’
total)
T9M260278P Power Supply, for desktop
enclosure, 120Vac
T9M260278EPA High Sensitivity Modular
Weather Station
same as above but with:
WS05E High Sensitivity Wind Sensor,
40' cable
Options:
T9M241270 Air Quality Particulate Air Monitor
