超声波测漏仪型号:VPE
库号：M211855

包括
探测器
耳机
接触式探针
波导
手册
电池
手提箱
技术的优越accutrak®VPE代表国家的的技术，针对泄漏是空调和制冷系统。
应用：
检漏：空气，真空，任何气体制冷剂！

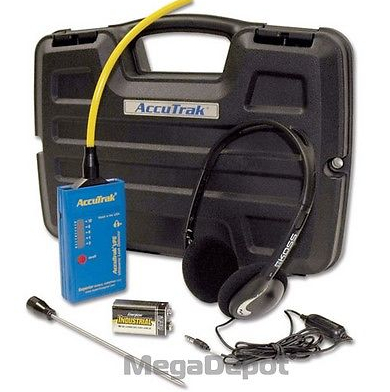

Includes
Detector
Headset
Touch Probe
Waveguide
Owners manual
Battery
Hard Case
The Patented Superior AccuTrak® VPE represents state-of-the-art technology for pinpointing leaks is air conditioning and refrigeration systems. AccuTrak® is extremely sensitive to the ultrasonic sound of a turbulent gas leak. Using a technology called "heterodyning" it translates the sound to a lower frequency which your ear can interpret. AccuTrak maintains the original sound characteristics making it possible to distinguish leaks from other competing background sounds. AccuTrak is so sensitive you can actually hear the blink of an eye, yet most background noise will not interfere with detection accuracy.
Applications:
Leak Detection: Air, Vacuum, Refrigerants; ANY GAS!
Steam Traps: Detect live steam loss in seconds!
Valves: Detect/hear internal leakage in check, ball, needle, gate or any type of valve! Diagnose thermal expansion valves in just five minutes!
Bearing Wear: Hear wear and lubrication problems before damage is done!
Features
Audio Output: 0 Hz to 4 kHz Natural Sound conversion allows you to Hear the Leak, and distinguish leaks from mechanical or other background ultrasound.
Visual Output: 10 element bar graph provides quick and intuitive visual indication to presence of and relative strength of ultrasound.
Adjustable Sensitivity: allows operator to quickly identify leaks from a distance, and then zero in on the exact location of the leak.
Capabilities:
Capable of detecting a 5 psi leak out of a 0.005" (5/1000 inch) hole, 20 to 30 feet away depending on background noise.
Easily detects any gas that generates ultrasonic sound during flow – including vacuum leaks.
Capable of detecting leaks equivalent to 1.5 oz/year of Refrigerant.
Works equally well for compressed Air or Nitrogen.
Not affected by wind or high concentrations of leaked gas or refrigerant.
Advantages Versus Sniffers
AccuTrak® VPE is a much more accurate and reliable instrument for detecting single and multiple leaks.
AccuTrak® VPE can detect any type of refrigerant gas including nitrogen.
AccuTrak® VPE detects both vacuum and pressure leaks.
AccuTrak® VPE is effective in gas saturated areas and under windy conditions.
AccuTrak® VPE does not require the introduction of tracer gases into the system, which can be ozone depleting when vented, and can also be harmful to ones health.
AccuTrak® VPE is battery powered for cordless operation
Advantages versus other Ultrasonic Leak Detectors
AccuTrak® VPE is #1 in technology. We wrote the book on ultrasonic leak detection, our patented instruments lead the industry!
AccuTrak® VPE is the original! it is not a copy.
AccuTrak® VPE is the most durable unit available, with the best warranty. The face of the unit is sealed with no pin holes/speakers for foreign objects to enter.
AccuTrak® VPE has more dynamic range, and wont overload in loud areas.
AccuTrak® VPE gives true audio sound reproduction instead of the "beeps and squeals" of other instruments.
Technical Specification
Mechanical:
Shape: Mostly Parallelepiped
Dimensions: (LWD) 4.15" (10.5cm) X 2.4" (61mm) X .875" (22.22mm)
Overall Length: 5.5" (14cm)
Body Materials: ABS
Body Finish: Blue ABS
Connector: 3.5mm Stereo
Top Label: Velvet Lexan, Back Printed
Weight: 0.3lb (138gr) Includes Battery
Electrical:
Airborne Sensor Sensitivity: -80db/V-μbar
Detection Performance*: 1.5oz/yr Refrigerant
Ultrasound Converter type: Heterodyne
Frequency response, AirBorne: 36kHz-42kHz
Heterodyne Oscillator: Analog
Heterodyne Filter: 4kHz
Controls 1 Button
Sensitivity Control: Continually Variable Slide
Output, Audio: 0Hz to 4kHz
Output, Visual: 10 Element Bar Graph
Battery Type: 9 Volt
Run Time: 80-120 hrs
