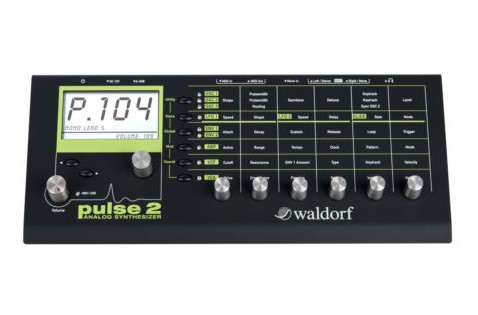

产品名称：模拟合成器
产品型号：Pulse 2
所属类别：环境、环保检测仪器 > 其他环境、环保检测仪器
发布时间：2016-07-15
已获点击：326

详细说明

模拟合成器 型号:Pulse 2

库号：M8153

特征

?3模拟振荡器+ 1噪声发生器

?脉冲宽度调制

?硬同步

?滤波调频振荡器3

?环形调制振荡器3
?异或振荡器模式
8 / 4?语音协音模式
?级联滤波器
?24db / 12dB的低通，高通，带通滤波器模式12dB
?琶音
?8-位置调制矩阵
?USB输入
?5针DIN MIDI输入和输出

?外部模拟信号输入
?向后兼容原脉冲合成器
?128X64点阵字符背光
?lcd8不锈钢门把手
?500音的节目
?电子吸收黑盒

Full featured analog synthesis at a great price!
As an all-new, all-analogue synthesizer design, Pulse 2 flawlessly delivers exactly what synth connoisseurs around the world have been truly craving for quite some time — three analogue oscillators living in perfect harmony with a VCF (VoltageControlled Filter), yet we did not stop there: the fresh filter circuits in the Pulse 2 now offer 12dB Highpass and Bandpass modes in addition to 24dB/12dB Lowpass for strengthened sound-sculpting flexibility, while we added analogue Filter FM, two Overdrive circuits, and Ring Modulation from OSC 3, together with Paraphonic and Unison modes allowing up to eight-voice chords — a fantastic feature found on our recently-released Rocket Synthesizer.
Pulse 2 is housed in a sturdy metal desktop casing. Alongside its generous 128x64-character backlit LCD, eight eye-catching stainless steel knobs are available to nimbly navigate through the parameter matrix — logically laid out across the front panel for all to see at all times, set the master Volume, and easily edit display-accessible parameters.
Connectivity comes well catered for courtesy of USB, MIDI In, MIDI Out, Ext In (external analogue signal input), line OUT, and headphone output — not forgetting, of course, CV Out (supporting both the V/octave and Hz/V standards) and Gate Out (V-Trigger- and S-Trigger-compatible), allowing a myriad of suitably equipped older (or newer) synths to be connected to the Pulse 2 to mirror whatever MIDI ‘note’ information is being played by the Pulse 2, including the output of its powerful ARP (arpeggiator). And if that’s not enough to be getting on with, the CV Out can even be modulated in the eight-slot modulation Matrix, making for even more tantalising tone colours and performance possibilities!
Alongside analogue must-haves like a noise generator, Pulsewidth modulation, and hard Sync, other notable features include an Alternating Pulsewidth Modulation mode new to the Pulse 2 (offering a dense PWM sound without affecting perceived loudness), and an XOR Osc mode (that is a binary XOR combination of two PWM oscillators with two distinct output levels — high and low only — capable of producing inharmonic spectra unlike anything associated with any analogue synthesizer other than the original Pulse) — all of which, of course, contribute to kickstarting those still sought-after sounds right here, right now in the 21st Century. Speaking of which, 500 onboard sound programs should be more than enough to keep the most diehard synthesist smiling! What’s more, all are backwards-compatible with the original Pulse series, so original Pulse owners can quickly transfer their favourite sounds to their new Pulse 2 via MIDI (dump).
Thanks, then, to the timely arrival of the Pulse 2 Analog Synthesizer, readily reincarnated ballsy bass tones and legendary leads beyond compare can all be yours with much more besides in a truly 21st Century compact and bijou performance package priced to go!
Features
?3 analog oscillators + 1 noise generator
?Pulse width modulation
?Hard sync
?Filter FM from oscillator 3
?Ring modulation from oscillator 3
?XOR oscillator mode
?8/4 voice paraphonic modes
?Cascade filter
?24dB/12dB low-pass, 12dB high-pass/band-pass filter modes
?Arpeggiator
?8-slot modulation matrix
?USB input
?5-pin DIN MIDI input & output
?External analog signal input
?Backwards compatible with original Pulse synth
?128x64 character backlit
?LCD8 stainless steel knobs
?500 sound programs
?Electron-absorbing black case
